Vest Bag Mini PP Blowing Film Machine

  • Vest Bag Mini PP Blowing Film Machine
  • Vest Bag Mini PP Blowing Film Machine
  • Vest Bag Mini PP Blowing Film Machine
  • Vest Bag Mini PP Blowing Film Machine

Vest Bag Mini PP Blowing Film Machine

    Brand: SANLONG
    Transportation: Ocean,Land,Air
    Place of Origin: WENZHOU
    Port: WENZHOU PORT,NINGBO PORT,AS BYUSERS

Basic Info

Model No.: SJ-55/FM800

Product Description

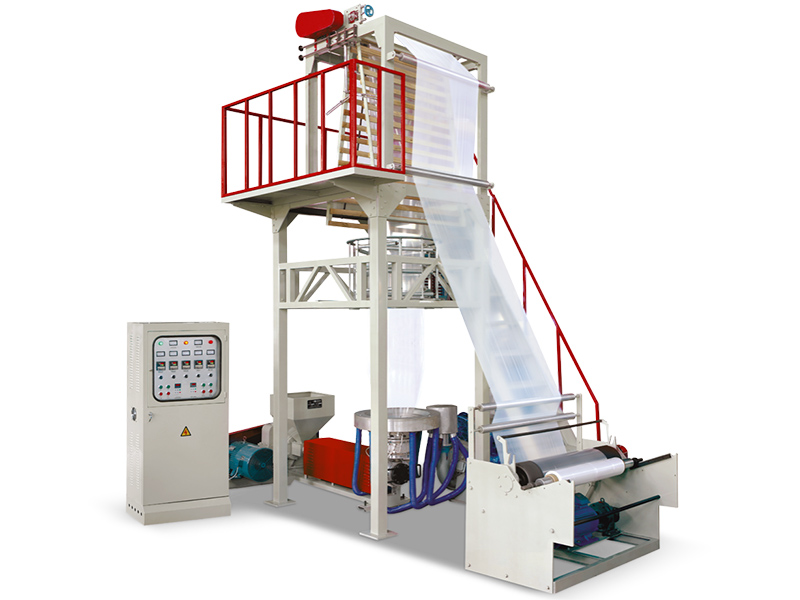

Vest Bag Mini PP Blowing Film Machine

Product Description:

The machine uses HDPE or LDPE as raw materials after being heated, extruded, blown, drawn and winded the materials become cylindrical plastic film, through cutting and sealing, the cylindrical film can be made into food packaging bag, shopping bags or liner bags within woven bag, the film can be used for agriculture film, field film and shed film after one or two side cut in the production processing.
Single extruder with 2 sets of dies can blow 2 rolls of circular films at the same time.
2-color extruder can produce circular film with multi-color strip.

Technical Data:

Model

SJ-55/FM800

Screw diameter(mm)

Φ55mm

Screw L/D Ratio

L/D28:1

Screw rotation

10-100r/min

Power of main motor

15kw

Max.Extrude Output

50kg/h

Single-face Thickess of film

0.006-0.10mm

Max Film Folding Dia

800mm

Total Power

22kw

Machine of weight

3200kg

Overall Dimension(L×W×H)

4400×2000×3800mm

POLYETHYLENE FILM BLOWER2
